Technical drawings of trams and trolleys

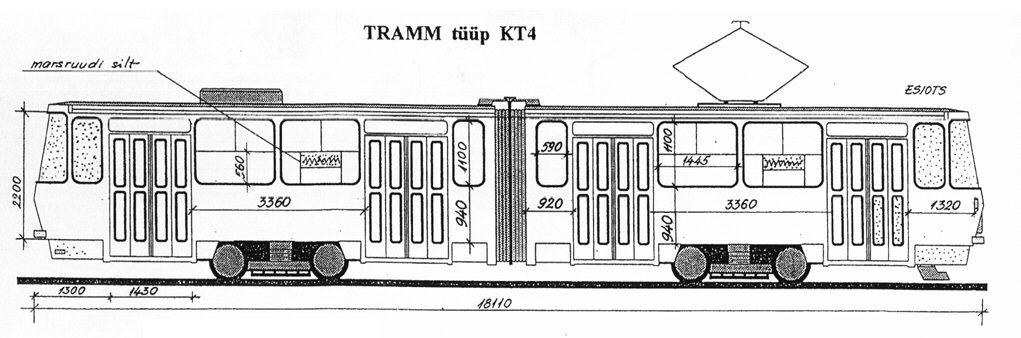

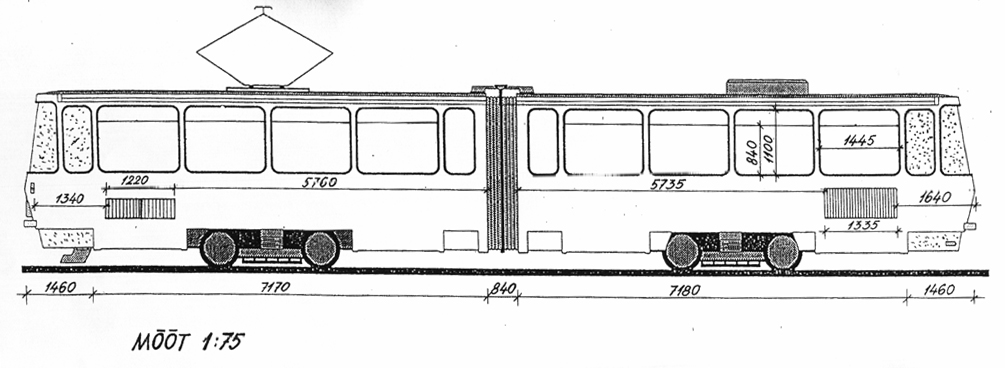

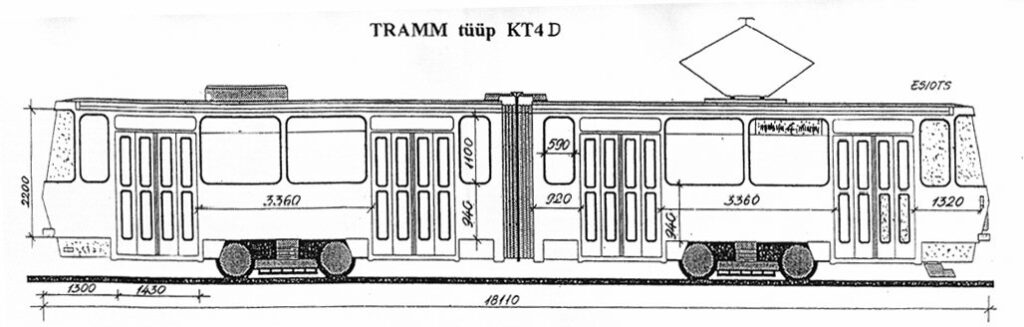

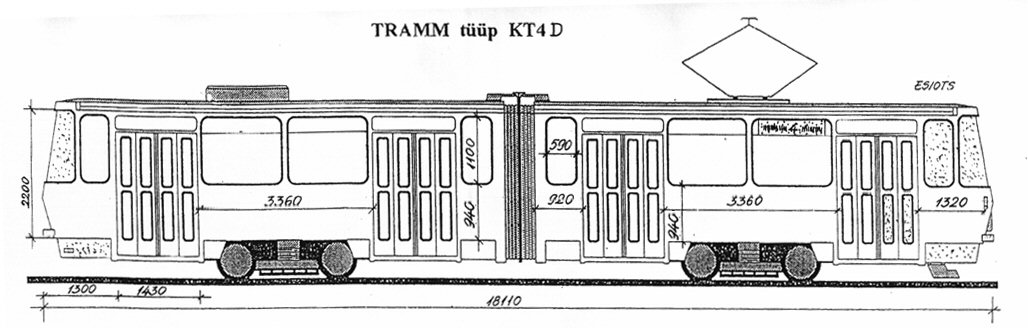

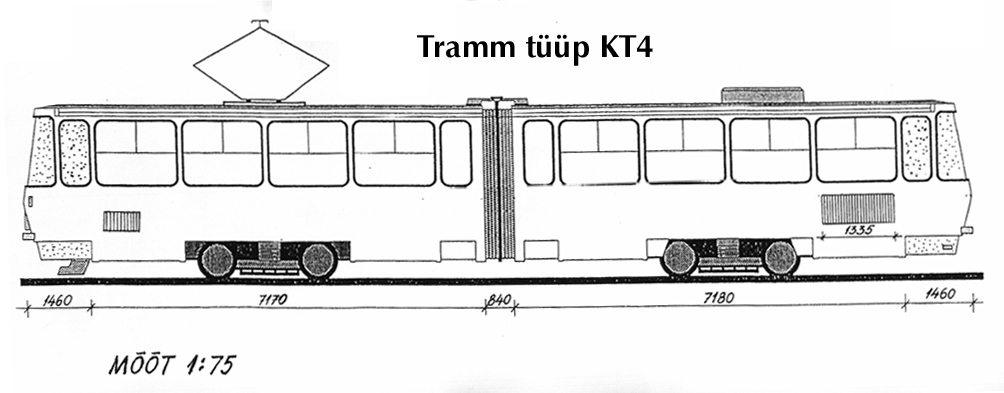

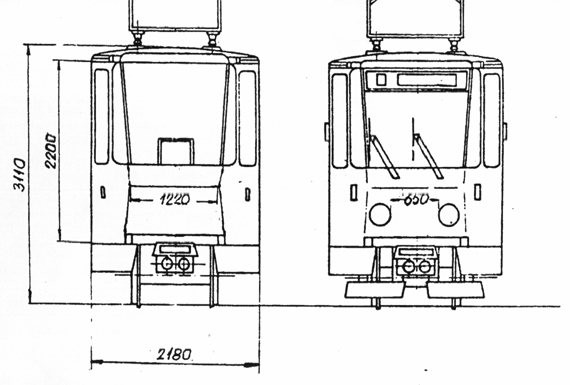

Technical drawings of the KT4 tram

  • Designs must be agreed upon during the development of the design.
  • On the windows (in the passenger compartment), it is only permitted to use a sticker (mesh) that affords a clear view of the outside from inside the vehicle.
  • The roof is always painted gray unless agreed otherwise.
  • Foreign-language texts must be approved in advance by the Language Inspectorate.
  • Stickers may not be placed on areas that are dotted in the drawings.
